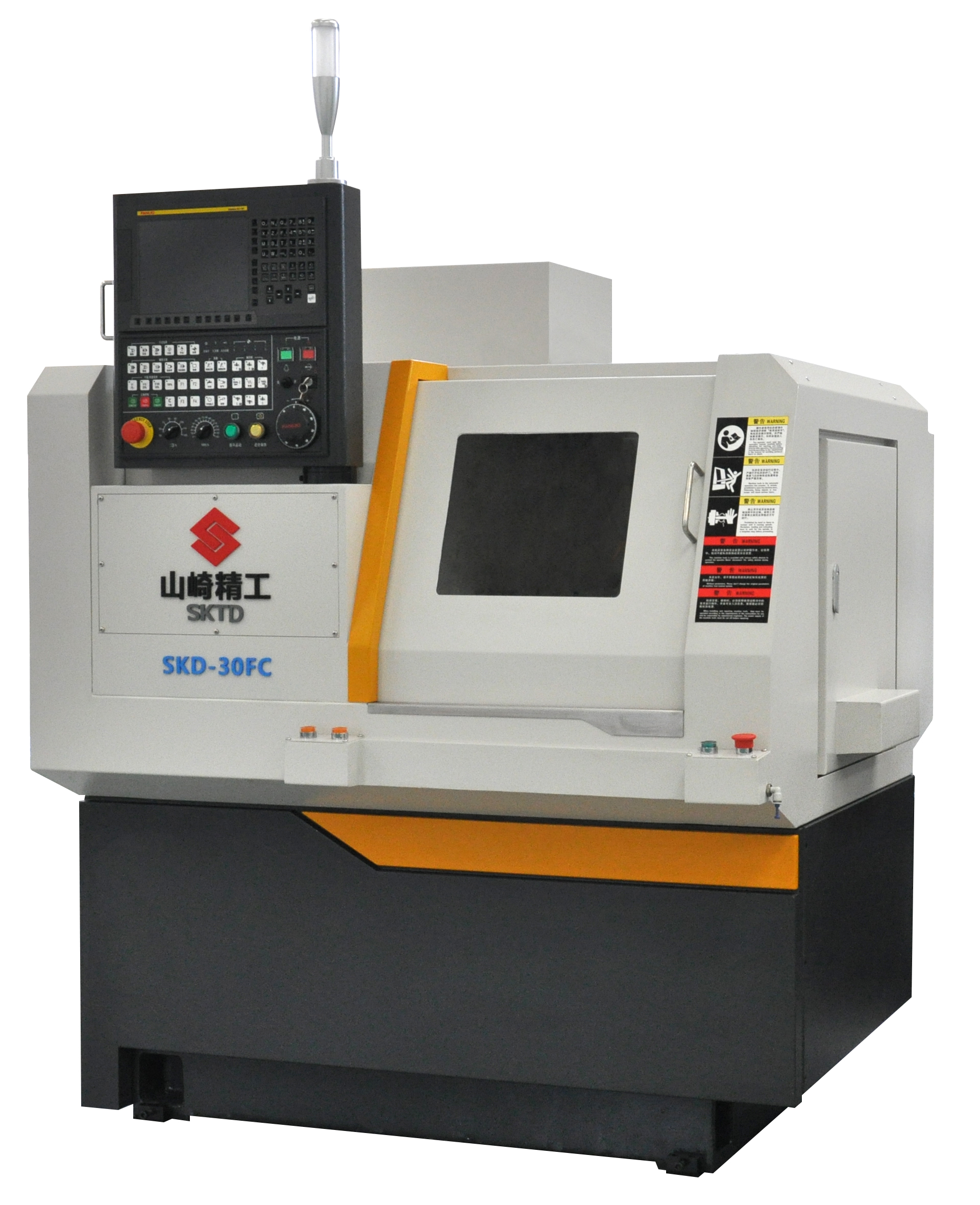

小型精密数控排刀车床 small gang tool lathe

型号：SKD-20/30F, SKD-20/30FC

产品时间：2025-07-14

简要描述：高精度高刚性主轴，整体铸铁床身，高精度直线导轨，排刀式刀架使重复换到误差位最小，换刀高速准确。满足中小直径高精度、高效率的自动化加工需求。High precision and High rigidity spindle. Integral cast iron bed frame. High precision linear guideways. The row knife type tool rest minimizes the error of repeated tool changing, ensuring high-speed and accurate tool changing.

产品咨询服务电话

详细介绍

高精度高刚性主轴，整体铸铁床身，高精度直线导轨，排刀式刀架使重复换到误差位最小，换刀高速准确。SKD-20/30FC满足中小直径高精度、高效率的自动化加工需求, 配置C轴轮廓控制，再配置动力刀具（钻孔、铣槽、刚性攻丝），实现丰富的柔性组合加工。

High precision and High rigidity spindle.

Integral cast iron bed frame.

High precision linear guideways.

The row knife type tool rest minimizes the error of repeated tool changing, ensuring high-speed and accurate tool changing.

SKD-20/30FC meets the high precision and high efficiency automated machining of small and medium diameter workpieces. It makes the rich flexible combination machining to be reality by equiping with C- axis profile control and power tools(drilling, milling, rigid tapping).

性能参数

		SKD-20/30F,SKD-20/30FC
Capacity	Max.swing dia.over bed	Φ240mm
	Max.swing dia.over tool holder	Φ120mm
	Max. machining diameter	Φ100mm
	Max.machining length	100mm
Spindle	Spindle speed	Max. 6000r/min
	Spindle hole	20F/FC Φ20mm
		30F/FC Φ30mm
	Center height of spindle	997mm
	Transformation of spindle speed	Stepless
	Spring collet shank	20F/FC: Φ26mm
		30F/FC: Φ36mm
Travel	Travel of X axis	280mm
	Travel of Z axis	180mm
Rapid travel	Rapid move of X axis	20000mm/min
	Rapid move of Z axis	20000mm/min
Motor	Spindle motor	20/30F: 3.7kw
		20/30FC: 3.7/5.5kw
	Feeding motor	0.75/1 kw
	Power supply	6 kVA
Other	Machine weight	1200kg
	Outline dimension：length×width×height	1446×1169×1531
