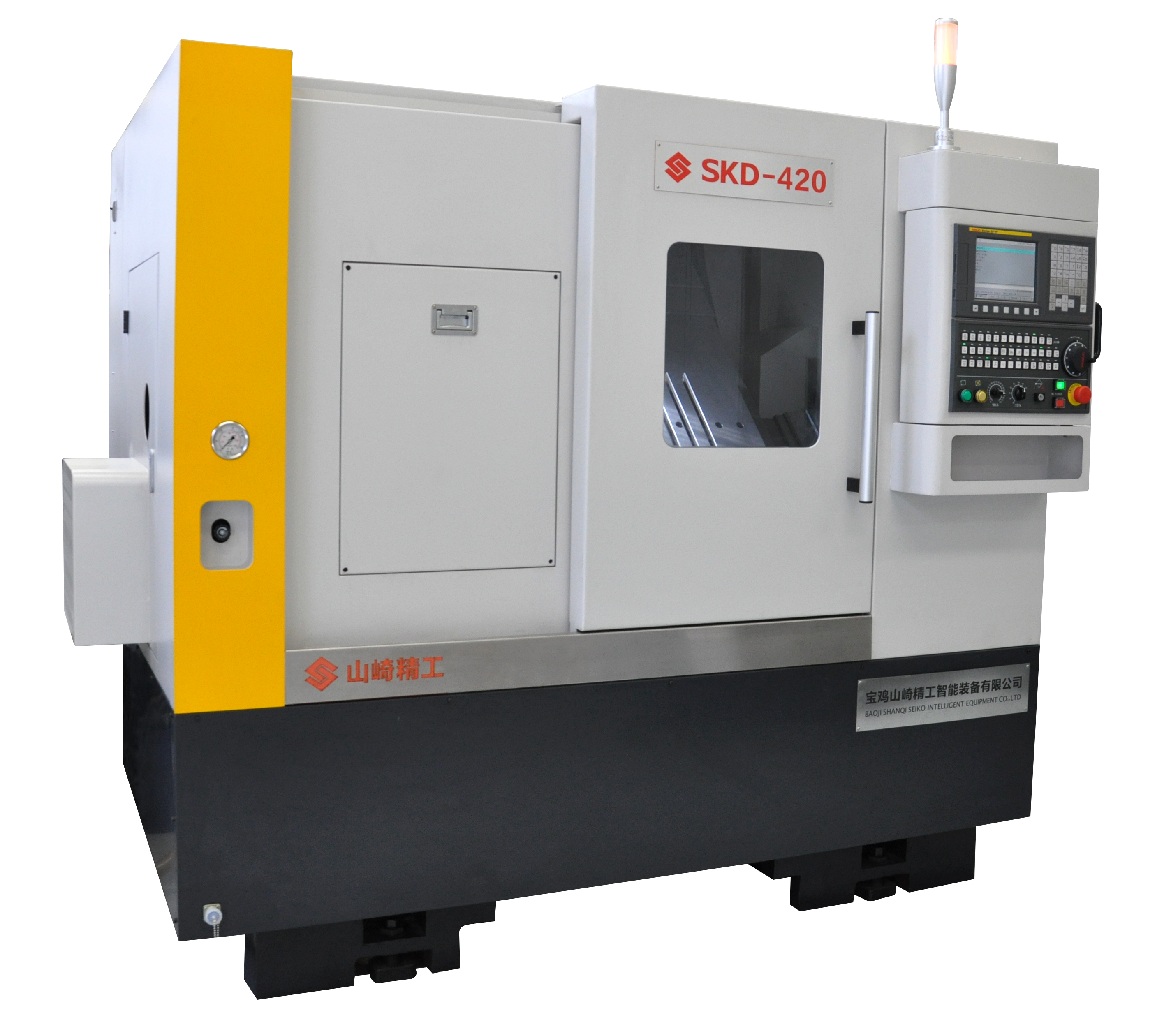

高精度斜床身数控车床 Slant bed cnc lathe

SKD-420

Capacity

Max.swing dia.over bed/slide daddle

Φ420mm / Φ120mm

Max. machining diameter

Φ360mm

Max.machining length

330mm

Max. Bar diameter

Φ45mm

Travel

Travel of X axis

450mm

Travel of Z axis

330mm

Spindle

Power output(30min/continuous)

7.5/11 kw

Hydraulic Chuck

  6″center hollow

Type of spindle

JIS A2-5

Spindle bore

Φ56mm

Spindle speed

4500 rpm

Feed

Rapid move of X axis

24000mm/min

Rapid move of Z axis

24000mm/min

Turret

Cutting tool

The row tools

Size (turning /boring)

20*20mm /Φ25mm

Accuracy

Positioning accuracy

≤±0.005mm

repeatability

≤±0.003mm

Other

Machine weight

3000kg

Outline dimension：length×width×height

1750×970×1850mm
